产品型号： |
CDRH63R;CDRH103R;CDRH104R |
产品名称： |

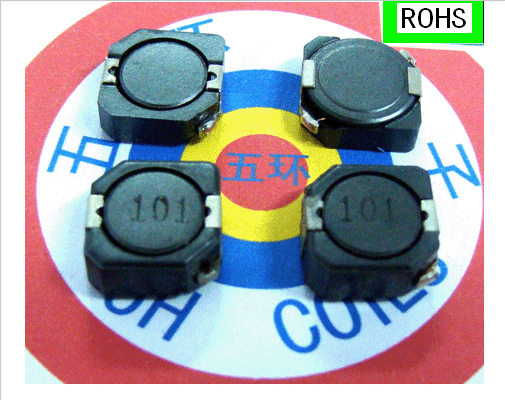

CDRH贴片功率电感 |
产品报价： |
元 |
产品特点： |
本产品有精度高，体积小，耐电流高等特点 |
 |
CDRH贴片功率电感组的详细资料： |
 |

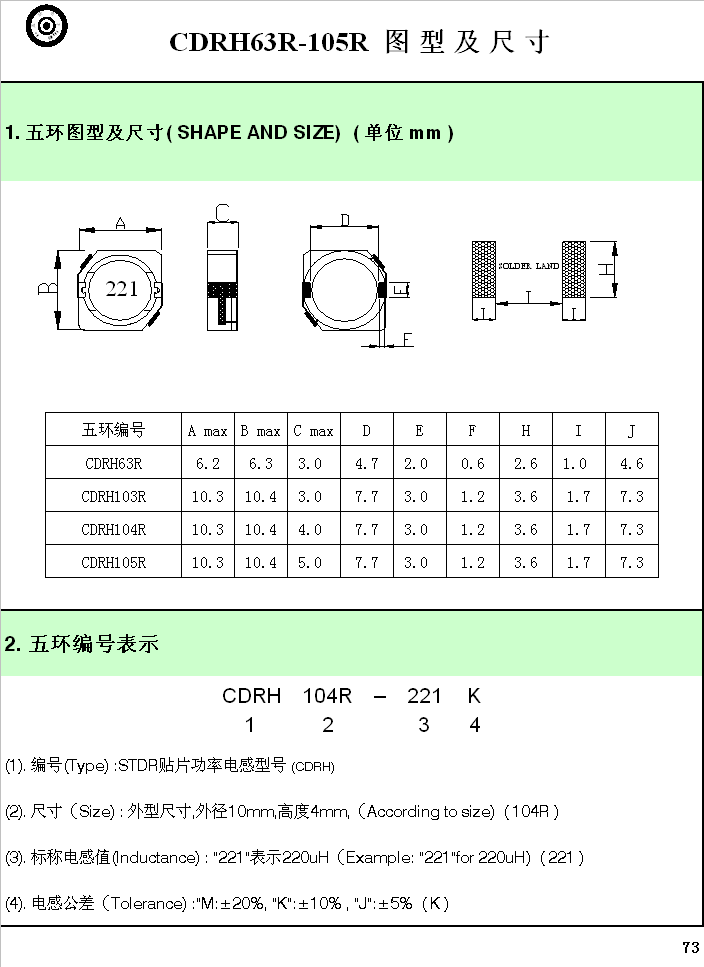

1. 五环图型及尺寸( SHAPE AND SIZE) ( 单位 mm )
2. 五环编号表示
CDRH 104 – 101 K
1 2 3 4
1. Product type 产品类型
2. Dimensions:Core OD宽度×ＩＤ高度 （10X4)
3.Inductance: 电感值
4.Ｔolerance公差（Ｋ＝１０％，Ｍ＝２０％）

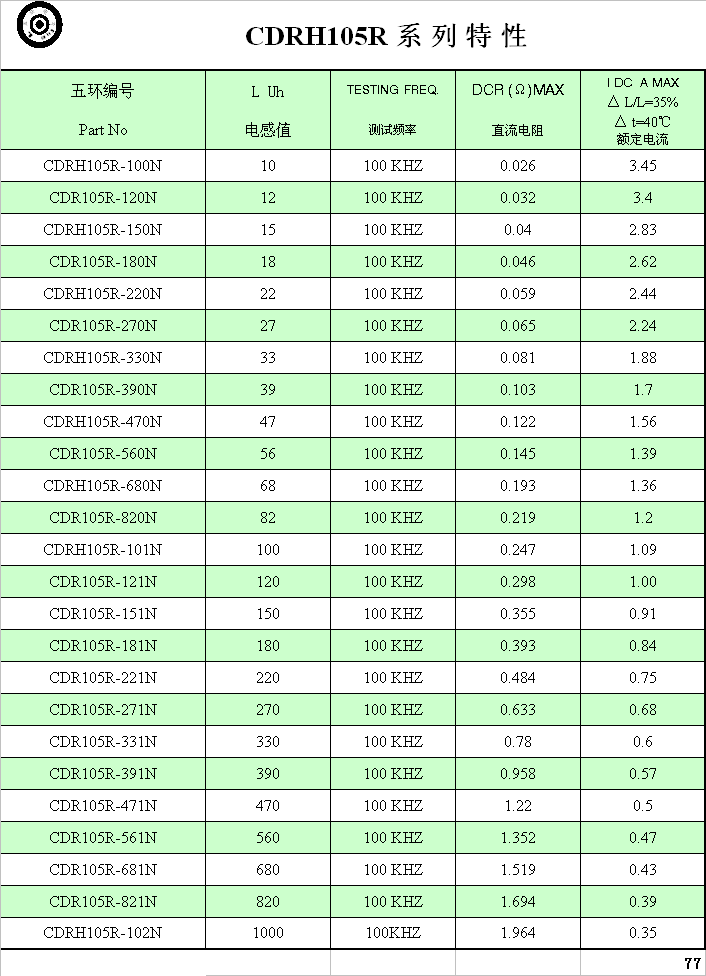

3. 详细规格

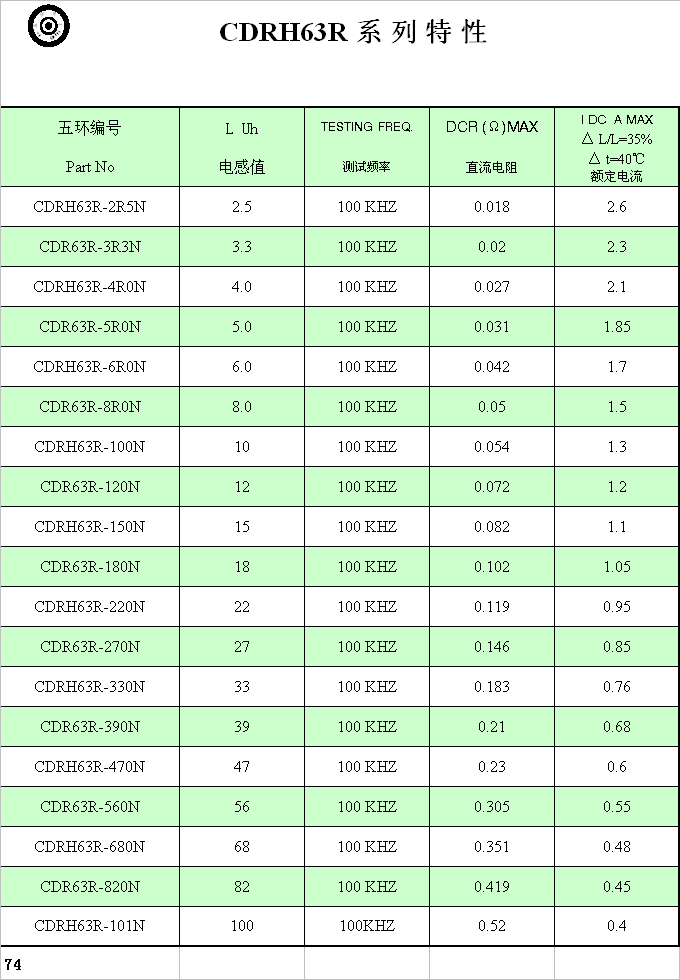

CDRH63R系列资料
| 五环编号 |
L uH |
TESTING FREQ. |
DCR (Ω)MAX |
I DC A MAX |
| △ L/L=35% |
| Part No |
电感值 |
测试频率 |
直流电阻 |
△ t=40℃ |
| 额定电流 |
| CDRH63R-2R5N |
2.5 |
100 KHZ |
0.018 |
2.6 |
|
| CDR63R-3R3N |
3.3 |
100 KHZ |
0.02 |
2.3 |
|
| CDRH63R-4R0N |
4.0 |
100 KHZ |
0.027 |
2.1 |
|
| CDR63R-5R0N |
5.0 |
100 KHZ |
0.031 |
1.85 |
|
| CDRH63R-6R0N |
6.0 |
100 KHZ |
0.042 |
1.7 |
|
| CDR63R-8R0N |
8.0 |
100 KHZ |
0.05 |
1.5 |
|
| CDRH63R-100N |
10 |
100 KHZ |
0.054 |
1.3 |
|
| CDR63R-120N |
12 |
100 KHZ |
0.072 |
1.2 |
|
| CDRH63R-150N |
15 |
100 KHZ |
0.082 |
1.1 |
|
| CDR63R-180N |
18 |
100 KHZ |
0.102 |
1.05 |
|
| CDRH63R-220N |
22 |
100 KHZ |
0.119 |
0.95 |
|
| CDR63R-270N |
27 |
100 KHZ |
0.146 |
0.85 |
|
| CDRH63R-330N |
33 |
100 KHZ |
0.183 |
0.76 |
|
| CDR63R-390N |
39 |
100 KHZ |
0.21 |
0.68 |
|
| CDRH63R-470N |
47 |
100 KHZ |
0.23 |
0.6 |
|
| CDR63R-560N |
56 |
100 KHZ |
0.305 |
0.55 |
|
| CDRH63R-680N |
68 |
100 KHZ |
0.351 |
0.48 |
|
| CDR63R-820N |
82 |
100 KHZ |
0.419 |
0.45 |
|
| CDRH63R-101N |
100 |
100KHZ |
0.52 |

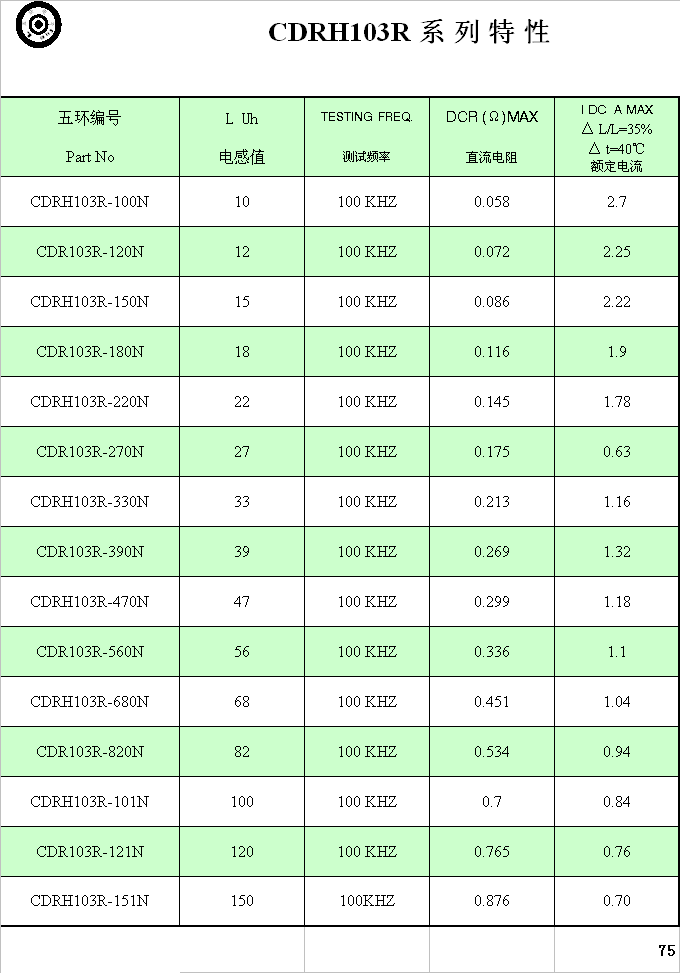

0.4 | CDRH103R系列资料
| 五环编号 |
L uH |
TESTING FREQ. |
DCR (Ω)MAX |
I DC A MAX |
| △ L/L=35% |
| Part No |
电感值 |
测试频率 |
直流电阻 |
△ t=40℃ |
| 额定电流 |
| CDRH103R-100N |
10 |
100 KHZ |
0.058 |
2.7 |
|
| CDR103R-120N |
12 |
100 KHZ |
0.072 |
2.25 |
|
| CDRH103R-150N |
15 |
100 KHZ |
0.086 |
2.22 |
|
| CDR103R-180N |
18 |
100 KHZ |
0.116 |
1.9 |
|
| CDRH103R-220N |
22 |
100 KHZ |
0.145 |
1.78 |
|
| CDR103R-270N |
27 |
100 KHZ |
0.175 |
0.63 |
|
| CDRH103R-330N |
33 |
100 KHZ |
0.213 |
1.16 |
|
| CDR103R-390N |
39 |
100 KHZ |
0.269 |
1.32 |
|
| CDRH103R-470N |
47 |
100 KHZ |
0.299 |
1.18 |
|
| CDR103R-560N |
56 |
100 KHZ |
0.336 |
1.1 |
|
| CDRH103R-680N |
68 |
100 KHZ |
0.451 |
1.04 |
|
| CDR103R-820N |
82 |
100 KHZ |
0.534 |
0.94 |
|
| CDRH103R-101N |
100 |
100 KHZ |
0.7 |
0.84 |
|
| CDR103R-121N |
120 |
100 KHZ |
0.765 |
0.76 |
|
| CDRH103R-151N |
150 |
100KHZ |
0.876 |

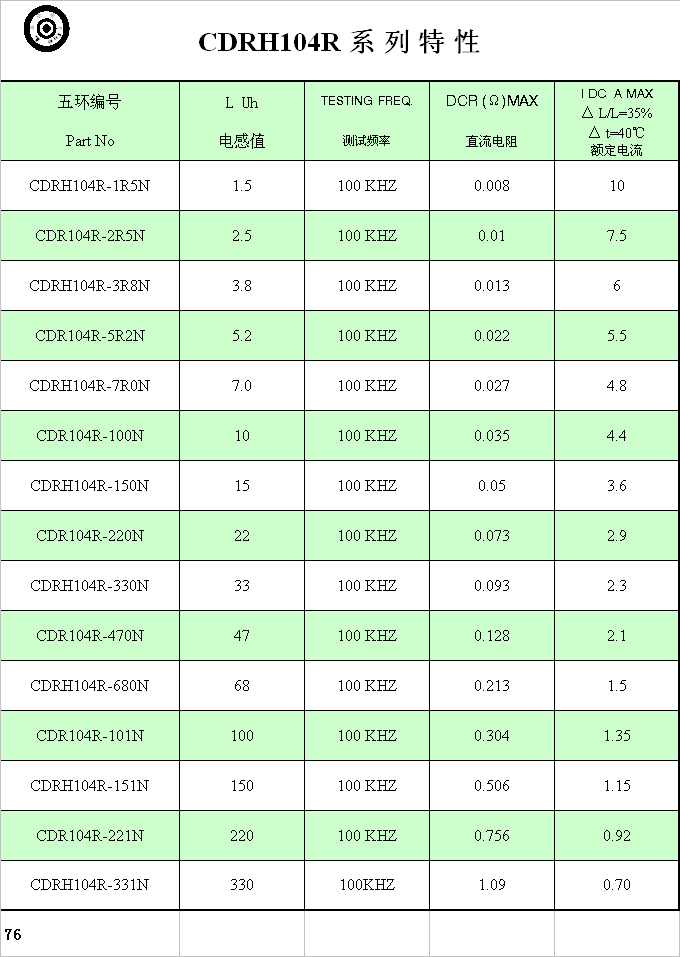

0.70 | CDRH104R系列资料
| 五环编号 |
L uH |
TESTING FREQ. |
DCR (Ω)MAX |
I DC A MAX |
| △ L/L=35% |
| Part No |
电感值 |
测试频率 |
直流电阻 |
△ t=40℃ |
| 额定电流 |
| CDRH104R-1R5N |
1.5 |
100 KHZ |
0.008 |
10 |
|
| CDRH104R-2R5N |
2.5 |
100 KHZ |
0.01 |
7.5 |
|
| CDRH104R-3R8N |
3.8 |
100 KHZ |
0.013 |
6 |
|
| CDRH104R-5R2N |
5.2 |
100 KHZ |
0.022 |
5.5 |
|
| CDRH104R-7R0N |
7.0 |
100 KHZ |
0.027 |
4.8 |
|
| CDRH104R-100N |
10 |
100 KHZ |
0.035 |
4.4 |
|
| CDRH104R-150N |
15 |
100 KHZ |
0.05 |
3.6 |
|
| CDRH104R-220N |
22 |
100 KHZ |
0.073 |
2.9 |
|
| CDRH104R-330N |
33 |
100 KHZ |
0.093 |
2.3 |
|
| CDRH104R-470N |
47 |
100 KHZ |
0.128 |
2.1 |
|
| CDRH104R-680N |
68 |
100 KHZ |
0.213 |
1.5 |
|
| CDRH104R-101N |
100 |
100 KHZ |
0.304 |
1.35 |
|
| CDRH104R-151N |
150 |
100 KHZ |
0.506 |
1.15 |
|
| CDRH104R-221N |
220 |
100 KHZ |
0.756 |
0.92 |
|
| CDRH104R-331N |
330 |
100KHZ |
1.09 |
0.70 | |
|
