产品型号： |
CSDR32;CSDR45CSDR57 |
产品名称： |
CSDR方形贴片电感 |
产品报价： |
元 |
产品特点： |
本产品有精度高，体积小， |
 |
CSDR方形贴片电感组的详细资料： |
 |
|

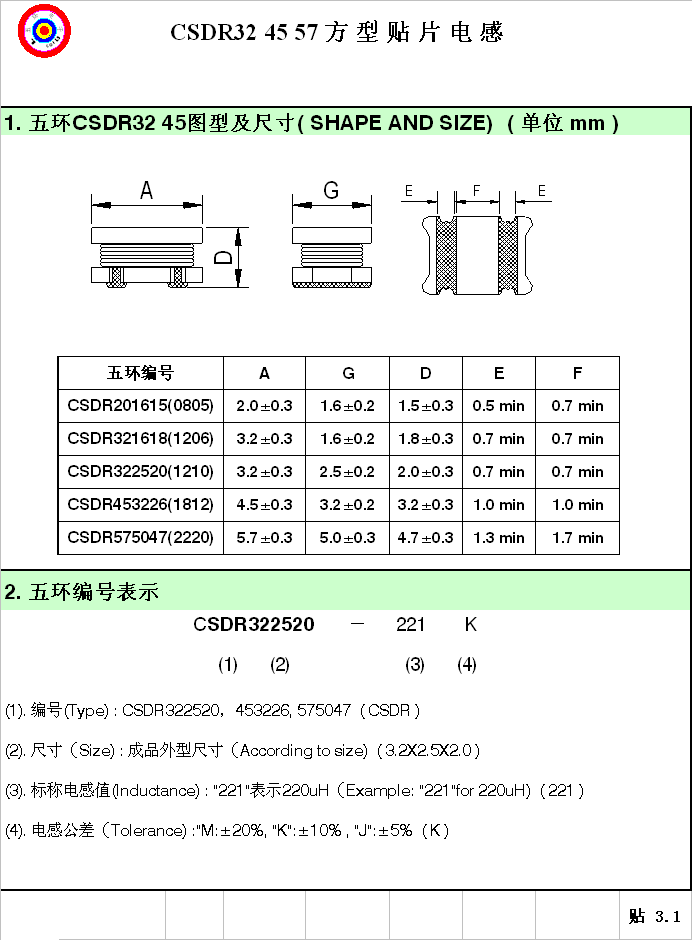

1. 图型及尺寸( SHAPE AND SIZE) ( 单位 mm )
 |
| 五环编号 |
A |
G |
D |
E |
F |
| CSDR322520 |
3.2±0.3 |
2.5±0.2 |
2.0±0.3 |
0.7 min |
0.7 min |
| CSDR453226 |
4.5±0.3 |
3.2±0.2 |
3.2±0.3 |
1.0 min |
1.0 min |
| CSDR575047 |
5.7±0.3 |
5.0±0.3 |
4.7±0.3 |
1.3 min |
1.7 min | 2. 五环编号表示
CSDR322520 － 221 K
(1) (2) (3) (4)
(1). 编号(Type) : CSDR322520，453226 ( CSDR )
(2). 尺寸（Size) : 成品外型尺寸（According to size) ( 3.2X2.5X2.0 )
(3). 标称电感值(Inductance) : "221"表示220uH（Example: "221"for 220uH) ( 221 )
(4). 电感公差（Tolerance) :"M:±20%, "K":±10% , "J":±5% ( K )
3. 详细规格
CSDR322520系列资料
| 五环编号 |
L |
TESTING |
DC |
RATED DC |
| FREQ. |
RESISTANCE |
CURRENT |
| (uH) |
(MHz). |
(Ω) MAX. |
mA MAX |
| CSDR322520-R10 |
0.10 |
1 |
0.25 |
700 |
| CSDR322520-R18 |
0.18 |
1 |
0.25 |
650 |
| CSDR322520-R27 |
0.27 |
1 |
0.25 |
600 |
| CSDR322520-R39 |
0.39 |
1 |
0.25 |
530 |
| CSDR322520-R56 |
0.56 |
1 |
0.25 |
530 |
| CSDR322520-R68 |
0.68 |
1 |
0.25 |
470 |
| CSDR322520-R82 |
0.82 |
1 |
0.25 |
450 |
| CSDR322520-1R0 |
1.0 |
1 |
0.50 |
445 |
| CSDR322520-1R2 |
1.2 |
1 |
0.60 |
425 |
| CSDR322520-1R5 |
1.5 |
1 |
0.60 |
400 |
| CSDR322520-1R8 |
1.8 |
1 |
0.70 |
390 |
| CSDR322520-2R2 |
2.2 |
1 |
0.80 |
370 |
| CSDR322520-2R7 |
2.7 |
1 |
0.90 |
320 |
| CSDR322520-3R3 |
3.3 |
1 |
1.00 |
300 |
| CSDR322520-3R9 |
3.9 |
1 |
1.10 |
290 |
| CSDR322520-4R7 |
4.7 |
1 |
1.20 |
270 |
| CSDR322520-5R6 |
5.6 |
1 |
1.30 |
250 |
| CSDR322520-6R8 |
6.8 |
1 |
1.50 |
240 |
| CSDR322520-8R2 |
8.2 |
1 |
1.60 |
225 |
| CSDR322520-100 |
10 |
1 |
1.80 |
190 |
| CSDR322520-120 |
12 |
1 |
2.00 |
180 |
| CSDR322520-150 |
15 |
1 |
2.20 |
170 |
| CSDR322520-180 |
18 |
1 |
2.50 |
165 |
| CSDR322520-220 |
22 |
1 |
2.80 |
150 |
| CSDR322520-270 |
27 |
1 |
3.10 |
125 |
| CSDR322520-330 |
33 |
1 |
3.50 |
115 |
| CSDR322520-390 |
39 |
1 |
3.90 |
110 |
| CSDR322520-470 |
47 |
1 |
4.30 |
100 |
| CSDR322520-560 |
56 |
1 |
4.90 |
85 |
| CSDR322520-680 |
68 |
1 |
5.50 |
80 |
| CSDR322520-820 |
82 |
1 |
6.20 |
70 |
| CSDR322520-101 |
100 |
1 |
7.00 |
80 |
| CSDR322520-121 |
120 |
1 |
8.00 |
75 |
| CSDR322520-151 |
150 |
1 |
9.30 |
70 |
| CSDR322520-181 |
180 |
1 |
10.2 |
65 |
| CSDR322520-221 |
220 |
1 |
11.8 |
65 |
| CSDR322520-271 |
270 |
1 |
12.5 |
65 |
| CSDR322520-331 |
330 |
1 |
13.0 |
65 |
| CSDR322520-391 |
390 |
1 |
22.0 |
50 |
| CSDR322520-471 |
470 |
1KHZ |
25.0 |
45 |
| CSDR322520-561 |
560 |
1KHZ |
28.0 |

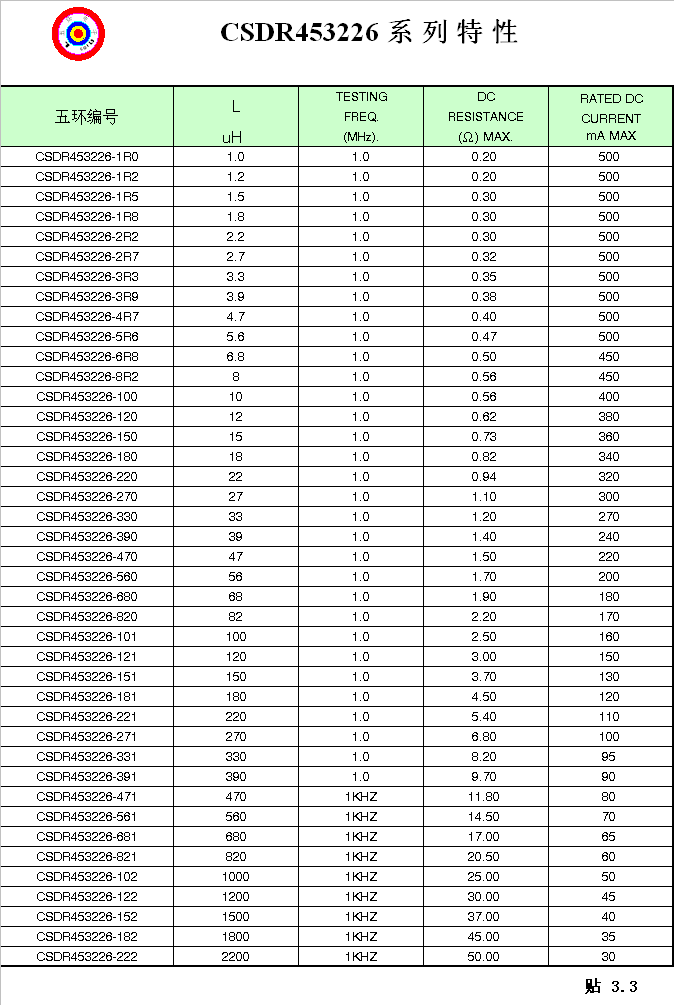

40 | CSDR453226系列资料
| 五环编号 |
L |
TESTING |
DC |
RATED DC |
| FREQ. |
RESISTANCE |
CURRENT |
| (uH) |
(MHz). |
(Ω) MAX. |
mA MAX |
| CSDR453226-1R0 |
1.0 |
1 |
0.200 |
500 |
| CSDR453226-1R2 |
1.2 |
1 |
0.200 |
500 |
| CSDR453226-1R5 |
1.5 |
1 |
0.300 |
500 |
| CSDR453226-1R8 |
1.8 |
1 |
0.300 |
500 |
| CSDR453226-2R2 |
2.2 |
1 |
0.300 |
500 |
| CSDR453226-2R7 |
2.7 |
1 |
0.320 |
500 |
| CSDR453226-3R3 |
3.3 |
1 |
0.350 |
500 |
| CSDR453226-3R9 |
3.9 |
1 |
0.380 |
500 |
| CSDR453226-4R7 |
4.7 |
1 |
0.400 |
500 |
| CSDR453226-5R6 |
5.6 |
1 |
0.470 |
500 |
| CSDR453226-6R8 |
6.8 |
1 |
0.500 |
450.00 |
| CSDR453226-8R2 |
8 |
1 |
0.560 |
450.00 |
| CSDR453226-100 |
10 |
1 |
0.560 |
400.00 |
| CSDR453226-120 |
12 |
1 |
0.620 |
380.00 |
| CSDR453226-150 |
15 |
1 |
0.730 |
360.00 |
| CSDR453226-180 |
18 |
1 |
0.820 |
340.00 |
| CSDR453226-220 |
22 |
1 |
0.940 |
320.00 |
| CSDR453226-270 |
27 |
1 |
1.100 |
300.00 |
| CSDR453226-330 |
33 |
1 |
1.200 |
270.00 |
| CSDR453226-390 |
39 |
1 |
1.400 |
240.00 |
| CSDR453226-470 |
47 |
1 |
1.500 |
220.00 |
| CSDR453226-560 |
56 |
1 |
1.700 |
200.00 |
| CSDR453226-680 |
68 |
1 |
1.900 |
180.00 |
| CSDR453226-820 |
82 |
1 |
2.200 |
170.00 |
| CSDR453226-101 |
100 |
1 |
2.500 |
160.00 |
| CSDR453226-121 |
120 |
1 |
3.000 |
150.00 |
| CSDR453226-151 |
150 |
1 |
3.700 |
130.00 |
| CSDR453226-181 |
180 |
1 |
4.500 |
120.00 |
| CSDR453226-221 |
220 |
1 |
5.400 |
110.00 |
| CSDR453226-271 |
270 |
1 |
6.800 |
100.00 |
| CSDR453226-331 |
330 |
1 |
8.200 |
95.00 |
| CSDR453226-391 |
390 |
1 |
9.700 |
90.00 |
| CSDR453226-471 |
470 |
1KHZ |
11.800 |
80.00 |
| CSDR453226-561 |
560 |
1KHZ |
14.500 |
70.00 |
| CSDR453226-681 |
680 |
1KHZ |
17.000 |
65.00 |
| CSDR453226-821 |
820 |
1KHZ |
20.500 |
60.00 |
| CSDR453226-102 |
1000 |
1KHZ |
25.000 |
50.00 |
| CSDR453226-122 |
1200 |
1KHZ |
30.000 |
45.00 |
| CSDR453226-152 |
1500 |
1KHZ |
37.000 |
40.00 |
| CSDR453226-182 |
1800 |
1KHZ |
45.000 |
35.00 |
| CSDR453226-222 |
2200 |
1KHZ |
50.000 |
30.00 | CSDR575047系列资料
| 五环编号 |
L |
TESTING |
DC |
RATED DC |
| FREQ. |
RESISTANCE |
CURRENT |
| (uH) |
(MHz). |
(Ω) MAX. |
A MAX |
| CSDR575047-R12 |
0.12 |
1 |
0.0098 |
6.00 |
| CSDR575047-R27 |
0.27 |
1 |
0.014 |
5.30 |
| CSDR575047-R47 |
0.47 |
1 |
0.0182 |
4.80 |
| CSDR575047-1R0 |
1.0 |
1 |
0.027 |
4.00 |
| CSDR575047-1R5 |
1.5 |
1 |
0.031 |
3.70 |
| CSDR575047-2R2 |
2.2 |
1 |
0.041 |
3.20 |
| CSDR575047-3R3 |
3.3 |
1 |
0.050 |
2.90 |
| CSDR575047-4R7 |
4.7 |
1 |
0.057 |
2.70 |
| CSDR575047-6R8 |
6.8 |
1 |
0.11 |
2.00 |
| CSDR575047-100 |
10 |
1 |
0.13 |
1.70 |
| CSDR575047-150 |
15 |
1 |
0.21 |
1.40 |
| CSDR575047-220 |
22 |
1 |
0.27 |
1.20 |
| CSDR575047-330 |
33 |
1 |
0.45 |
0.90 |
| CSDR575047-470 |
47 |
1 |
0.56 |
0.80 |
| CSDR575047-680 |
68 |
1 |
0.94 |
0.64 |
| CSDR575047-101 |
100 |
100KHZ |
1.20 |
0.56 |
| CSDR575047-151 |
150 |
100KHZ |
2.66 |
0.42 |
| CSDR575047-221 |
220 |
100KHZ |
3.36 |
0.32 |
| CSDR575047-331 |
330 |
100KHZ |
6.16 |
0.27 |
| CSDR575047-471 |
470 |
100KHZ |
7.56 |
0.24 |
| CSDR575047-681 |
680 |
100KHZ |
11.34 |
0.19 |
| CSDR575047-102 |
1000 |
10KHZ |
14.42 |
0.15 |
| CSDR575047-222 |
2200 |
10KHZ |
30.10 |
0.10 |
| CSDR575047-472 |
4700 |
10KHZ |
61.04 |
0.07 |
| CSDR575047-103 |
10000 |
10KHZ |
140.00 |
0.05 | |
|
